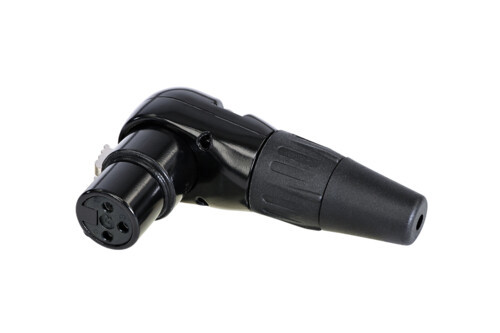

מחבר XLR נקבה זוויתי לכבל,
דגם Rean by neutrik RC3FR-B-D
20.00 ₪
RC3FR-B-D מחבר XLR נקבה זוויתי לכבל Rean by Neutrik
| Product | |
| Title | RC3MR |
| Connection Type | XLR |
| Gender | male |
| Electrical | |
| Insulation Resistance | > 1.5 GΩ |
| Contact Resistance | ≤ 5 mΩ |
| Rated Current | 10 A |
| Mechanical | |
| Lifetime | >1000 Mating Cycles |
| Insertion Force | ≤ 30 N |
| Withdrawal Force | ≤ 20 N |
| Cable O.D. | 4 – 7 mm |
| Wiresize | 1.5 mm² |
| Wiresize | 16 AWG |
| Material | |
| Pin | Brass |
| Male Insert | PA6+30%GF UL94-HB |
| Ground Contact | Bronze |
| Housing | Zinc |
| Front Body | Zinc |
| Push Tube | PP |
| Cover | Zinc |
| Chuck | POM |
| Bushing | PA6+30%GF |
| Push Ring | POM |
| Boot | PVC |
| Pin | Sliver Plating |
| Ground Contact | Tin and Cer |
| Housing | Nickel Plating |
| Front Body | Nickel Plating |
| Cover | Nickel Plating |
