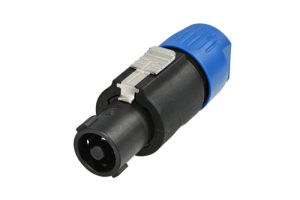

מחבר SPEAKON ספיקון 4 קטבים סטנדרט תעשייתי,
לחיבורי רמקול דגם RLS4FC של REAN BY NEUTRIK
21.00 ₪
ספיקון RLS4FC לכבל 4 פין תוצרת REAN BY NEUTRIK SPEAKON
4 pole loudspeaker cable connector with latch lock, chuck and bushing, bulk packed
| Product | |
| Title | RLS4FC |
| Connection Type | Loudspeaker Connectors |
| Electrical | |
| Contact resistance | ≤ 5 mΩ (after lifetime) |
| Dielectric strength | 4 kVdc (peak) |
| Insulation resistance | > 1 GΩ (after dampheat test) |
| Rated current per contact | 30 A |
| Rated voltage | 250 V (insulation) |
| Attention | Shall NOT be used as an AC mains connector! |
| Mechanical | |
| Cable O.D. | 6 – 10 mm |
| Lifetime | > 1000 mating cycles |
| Wiresize | 4 mm² |
| Wiresize | 12 AWG |
| Environmental | |
| Temperature range | -30 °C to +80 °C |
